RailCAD--Shared CAD Drawings of Railroad Prototypes



50 Ton Bettendorf Freight Car Truck

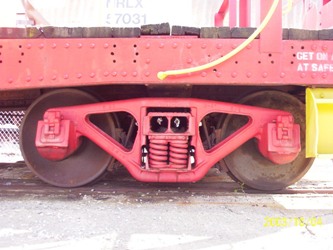

Here are SolidWorks and IGS files for the freight car truck pictured at right. These files are already scaled to 1:20.32 with a 6% enlargement to account for mold shrinkage.

50 Ton Bettendorf Side Frame & Bolster (Winrar zipped files IGS)

50 Ton Bettendorf Side Frame (Winrar zipped SolidWorks file, self-extracting)

50 Ton Bettendorf Bolster (Winrar zipped SolidWorks file, self-extracting)

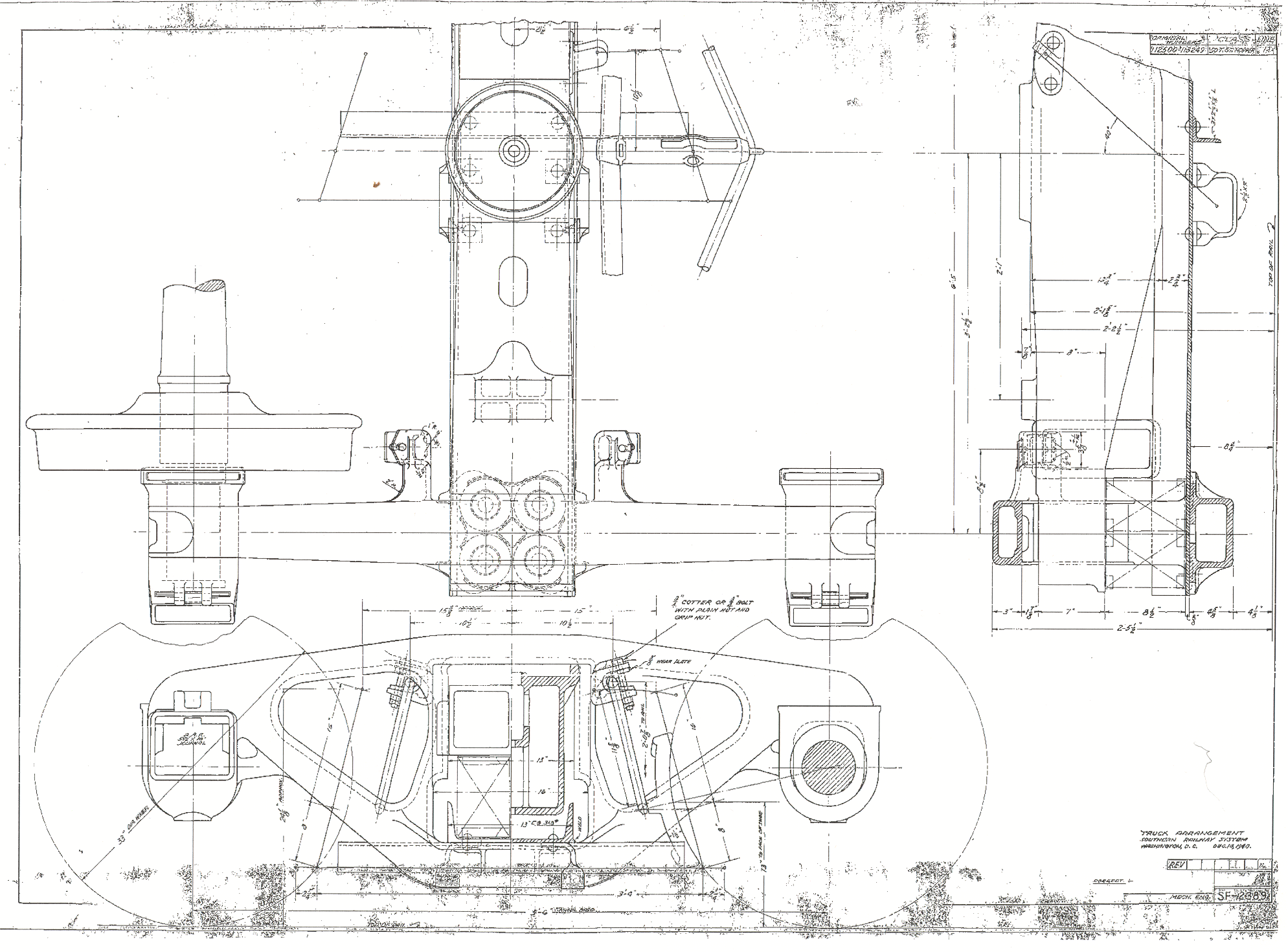

Drawings: Here are the prototype Southern Railway blueprints (PDFs and Bitmap) with Assembly drawings showing the general dimensions of the spring plank and brake rigging:

Side Frame    Bolster    Assembly 1    Assembly 2
